The HDPE washing line is designed for rigid plastics with a wall thickness ranging from 1~25 mm such as HDPE bottle container, etc. The HDPE bottles Recycling Line is mainly composed of Single Shaft Shredder/Plastic Crusher, Helix Loader,Per-washer, Label Removing Machine,vertical Dewatering Machine, Dryer and other equipment.
Features
It is suitable for handling PET bottle. Material will be processed by label removing, crushing, washing, dewatering, and drying. The humidity of final output could be within 2%.The whole production line is easy to operate, efficient and low energy consumption.
High-speed washing system with corresponding speed according to material type liberates contamination from plastic flakes.
The underwater force-washing paddle of the washing tank maximize the washing efficiency.
Mechanical and thermal drying systems minimize the moisture of the end product.
Shredding, high-speed washing and drying is set at suitable intensity to avoid over friction and cause material loss (fines creation).
System automation ensures that components actions are linked, the system capacity is maximized, and the system is protected against interfering material in the best way
Parameters
model JRR-300 JRR-500 JRR-1000 JRR-3000
Capacity (kg/h) 300 500 1000-1500 2000-3000
Total installed power (kw/h) 120-150 200-250 300-350 400-450
Water consumption
(should be recycling use) (ton/h) 2-3 4-6 8-10 15-20
Labour required 2-3 2-3 5-6 8-10
Length of washing line Around 30meter Around 40meter Around 60meter Around 80meter

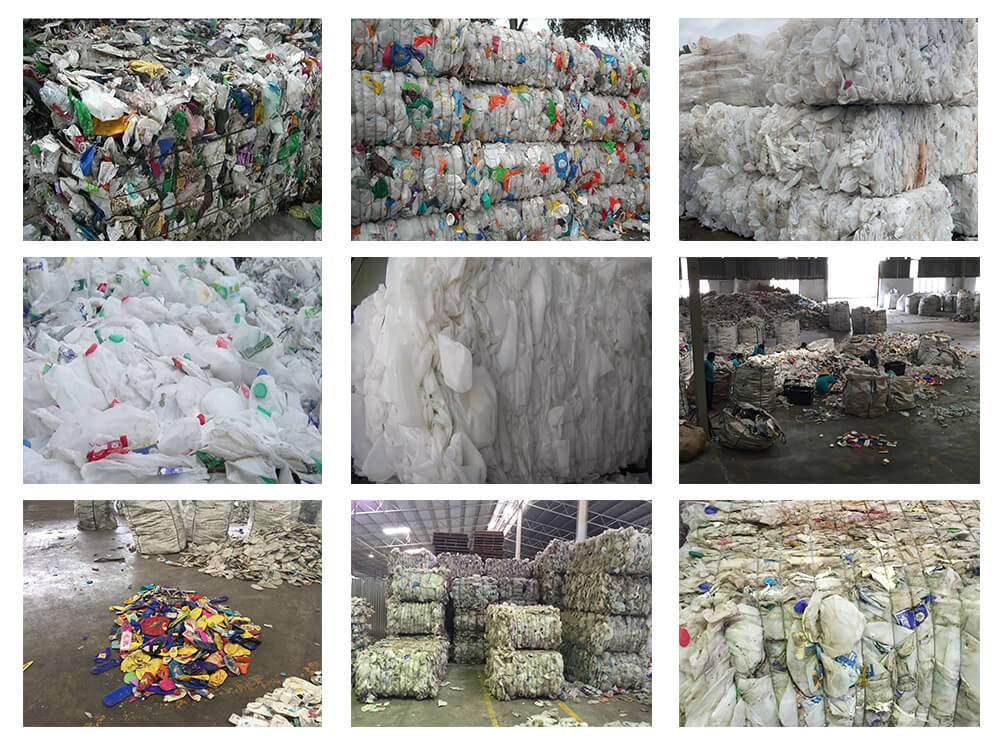

Appliction
